返回保温系列Back to Thermal Series CAS-YN450 基础款 可选表面憎水型

高性价比纳米孔绝热材料

Cost-Effective Nanoporous Insulation

在保持纳米孔绝热性能的同时，实现更加经济的综合应用成本，为工业设备及管道提供长期稳定的节能解决方案。

Achieving superior nanoporous insulation performance with optimized total cost, delivering long-term energy efficiency for industrial equipment and piping.

650℃
最高使用温度
Max Temperature
λ=0.031
导热系数 W/(m·K)
Conductivity W/(m·K)
A1不燃
燃烧性能
Fire Rating
10–15年
使用寿命
Service Life
技术参数 Tech Specs 下载资料手册 Download Datasheet 联系工程师 Contact Engineer
CAS-YN450 高性价比纳米孔绝热材料
为什么选择 YN450 Why YN450

让纳米材料进入更多工业应用

Bringing Nanoporous Technology to More Industrial Applications

CAS-YN450采用纳米孔绝热技术，在保证低导热系数、长期稳定性和柔性施工性能的基础上，实现更加经济的综合成本，为工业用户提供兼顾性能与投资回报的绝热解决方案。

CAS-YN450 utilizes nanoporous insulation technology to deliver low thermal conductivity, long-term stability, and flexible installation with a more economical total cost. It offers industrial users an insulation solution that balances performance with return on investment.

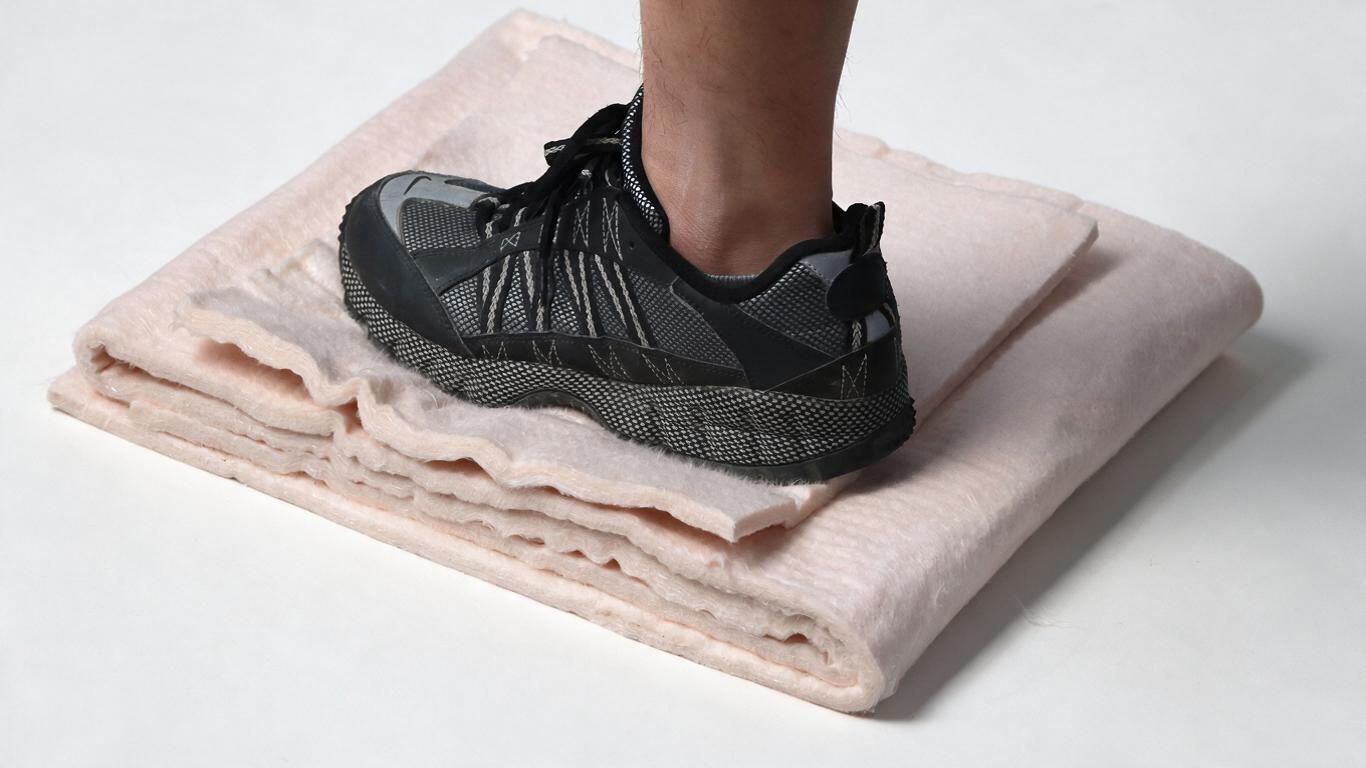

CAS-YN450 纳米孔绝热材料 — 高回弹、可承压
核心优势 Core Advantages

四项核心技术，一个解决方案

Four Core Technologies, One Solution

纳米复合技术

纳米复合技术

Nano Composite Technology

纳米孔颗粒与连续铝镁纤维深度复合，构建高效、稳定的绝热体系。

Nano-porous particles deeply composited with continuous Al-Mg fibers to build a highly efficient and stable insulation system.

热传导抑制

热传导抑制

Thermal Conduction Suppression

通过优化材料微观结构，有效降低固体热传导，提高绝热效率。

Optimized micro-structure effectively reduces solid thermal conduction, improving insulation efficiency.

热对流抑制

热对流抑制

Thermal Convection Suppression

纳米级孔径限制空气流动，显著降低孔隙内热对流传递。

Nanoscale pore size restricts air movement, significantly reducing convective heat transfer within pores.

热辐射抑制

热辐射抑制

Thermal Radiation Suppression

抗辐射组分有效降低高温热辐射传递，提升高温工况绝热性能。

Radiation-resistant components effectively reduce high-temperature radiative heat transfer, enhancing insulation performance under elevated temperatures.

典型应用 Typical Applications

中高温工业管道

Medium-to-High Temperature Industrial Piping

中高压蒸汽主管

Medium/High-Pressure Steam Mains

裂解炉出口管道

Cracking Furnace Outlet Piping

加氢反应器

Hydrogenation Reactors

催化装置

Catalytic Units

锅炉及汽轮机

Boilers & Steam Turbines

导热油系统

Thermal Oil Systems

长输蒸汽管道

Long-Distance Steam Pipelines

换热器

Heat Exchangers

适用于石油化工、煤化工、电力、冶金等行业

Suitable for petrochemical, coal chemical, power, and metallurgy industries

工程价值 Engineering Value

为客户创造可量化的工程收益

Quantifiable Engineering Benefits

40%+
减少热损失
Heat Loss Reduction
25%+
降低运行能耗
Energy Consumption Reduction
50%↓
减少维护频率
Maintenance Frequency
<1年
超额投资回收周期
Incremental Payback

保温层厚度对比

Insulation Thickness Comparison

厚度减少 50% — 相同保温效果下，YN450 保温层总厚度仅为传统材料的 50%，大幅节省管廊空间与支架载荷 50% Thinner — Under equivalent insulation performance, YN450 requires only 50% of traditional material thickness, significantly saving pipe rack space and support load.
传统保温方案 30mm/层 × 4层 120mm CAS-YN450 方案 10mm/层 × 6层 60mm
技术参数 Technical Specifications

CAS-YN450

CAS-YN450

导热系数（25℃）Thermal Conductivity (25℃)0.031 W/(m·K)
导热系数（300℃）Thermal Conductivity (300℃)0.064 W/(m·K)
导热系数（500℃）Thermal Conductivity (500℃)0.105 W/(m·K)
最高使用温度Max Temperature650℃
憎水率Hydrophobicity/
燃烧性能Fire PerformanceA1级
抗拉强度Tensile Strength≥80 kPa
容重Bulk Density120 ± 20 kg/m³
导热系数（25℃）Thermal Conductivity (25℃)0.031 W/(m·K)
导热系数（300℃）Thermal Conductivity (300℃)0.064 W/(m·K)
导热系数（500℃）Thermal Conductivity (500℃)0.105 W/(m·K)
最高使用温度Max Temperature650℃
憎水率Hydrophobicity表面憎水（荷叶效应）Surface hydrophobic (lotus effect)
燃烧性能Fire PerformanceA1级
抗拉强度Tensile Strength≥80 kPa
容重Bulk Density120 ± 20 kg/m³
CAS 系列产品对比 CAS Series Comparison

如何选择产品

How to Choose

根据您的工况温度和性能需求，选择最适合的产品型号

Select the model that best fits your temperature and performance requirements

CAS-YN450

高性价比纳米孔绝热材料

Cost-Effective Nanoporous Insulation

最高650℃ | 经济型方案

Up to 650℃ | Economical
CAS-A0

加强款

Reinforced Grade

最高650℃ | 更高抗拉强度

Up to 650℃ | Higher Tensile Strength
CAS-HT

超高温型

Ultra-High Temperature

最高1000℃ | 极限工况

Up to 1000℃ | Extreme Conditions

需要选型建议或技术咨询？

Need Selection Advice or Technical Consultation?

联系我们的技术工程师，获取针对您工况的专业产品推荐和定制化解决方案。

Contact our engineers for professional product recommendations and customized solutions for your application.
