返回保温系列Back to Thermal Series CAS-A0 基础款 可选整体憎水型 A0TH

加强款纳米孔绝热材料

Reinforced Nanoporous Insulation

在常规产品基础上提升抗拉强度与结构稳定性，并可选用整体憎水型（CAS-A0TH），适用于对机械强度、耐久性和施工可靠性要求较高的设备与管道。

Enhanced over standard grades with higher tensile strength and structural stability, available in a fully hydrophobic variant (CAS-A0TH). Suited to equipment and piping where mechanical strength, durability and installation reliability matter most.

650℃
最高使用温度
Max Temperature
λ=0.030
导热系数 W/(m·K)
Conductivity W/(m·K)
A1不燃
燃烧性能
Fire Rating
≥100kPa
抗拉强度
Tensile Strength
技术参数 Tech Specs 下载资料手册 Download Datasheet 联系工程师 Contact Engineer
CAS-A0 加强款纳米孔绝热材料
为什么选择 A0 Why CAS-A0

以更高强度应对复杂工况

Higher Strength for Demanding Conditions

CAS-A0 在纳米孔绝热技术基础上优化配方与工艺，抗拉强度提升至 ≥100 kPa，结构稳定性更好；并可选整体憎水型 CAS-A0TH（憎水率≥98%），适用于对强度、耐久性及施工可靠性要求较高的工况。

CAS-A0 optimizes formulation and process based on nanoporous insulation technology, raising tensile strength to ≥100 kPa for improved structural stability. A fully hydrophobic variant CAS-A0TH (≥98%) is available for applications demanding higher strength, durability and installation reliability.

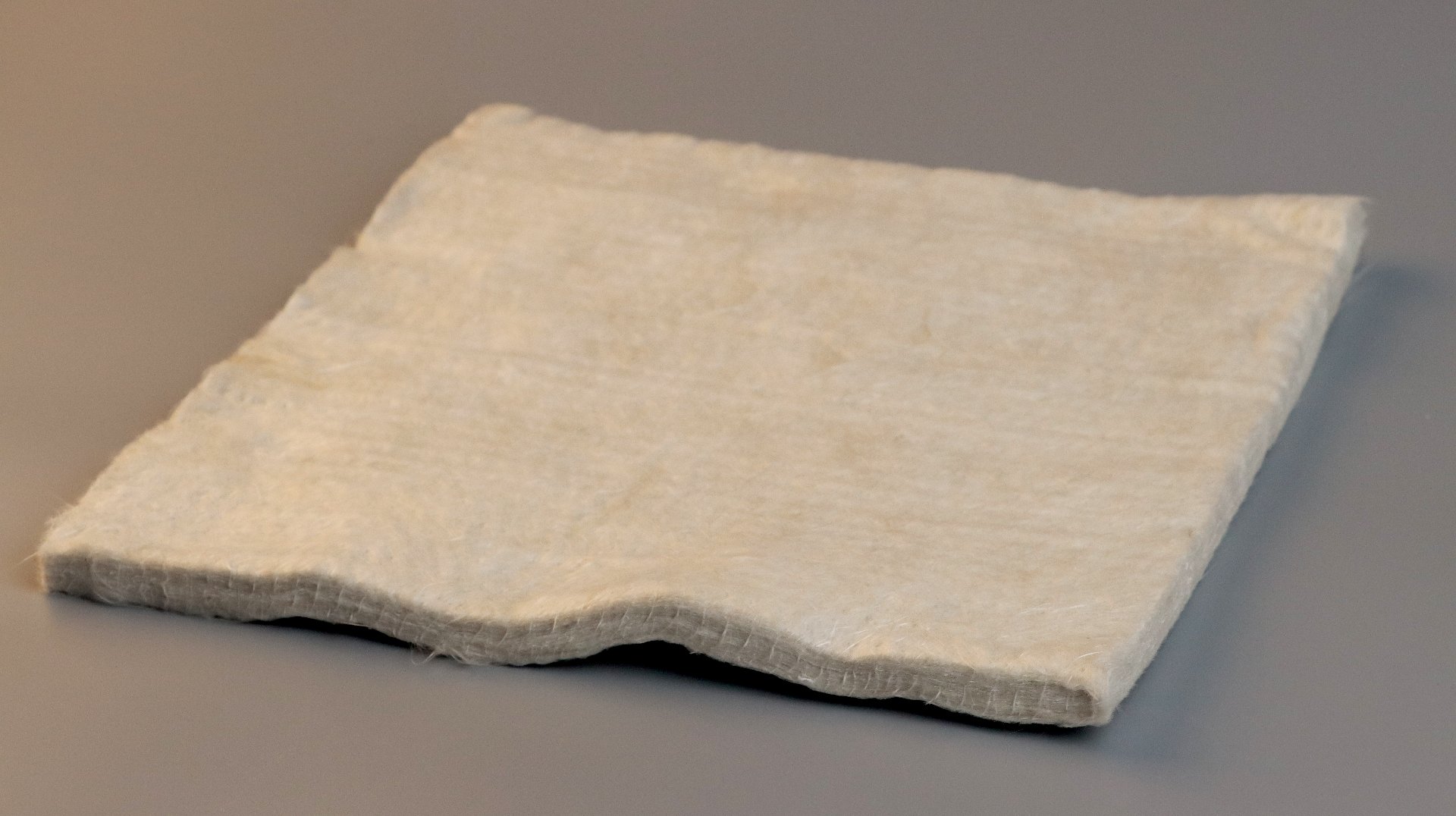

CAS-A0 加强款纳米孔绝热材料 — 实拍样品
核心优势 Core Advantages

四项核心技术，一个解决方案

Four Core Technologies, One Solution

纳米复合技术

纳米复合技术

Nano Composite Technology

纳米孔材料与连续铝镁纤维深度复合，构建高效、稳定的绝热体系。

Nano-porous material deeply composited with continuous Al-Mg fibers to build a highly efficient and stable insulation system.

热传导抑制

热传导抑制

Thermal Conduction Suppression

通过优化材料微观结构，有效降低固体热传导，提高绝热效率。

Optimized micro-structure effectively reduces solid thermal conduction, improving insulation efficiency.

热对流抑制

热对流抑制

Thermal Convection Suppression

纳米级孔径限制空气流动，显著降低孔隙内热对流传递。

Nanoscale pore size restricts air movement, significantly reducing convective heat transfer within pores.

热辐射抑制

热辐射抑制

Thermal Radiation Suppression

抗辐射组分有效降低高温热辐射传递，提升高温工况绝热性能。

Radiation-resistant components effectively reduce high-temperature radiative heat transfer, enhancing insulation performance under elevated temperatures.

典型应用 Typical Applications

国际工程与高端装备

International Projects & High-End Equipment

海外 EPC 项目

Overseas EPC Projects

出口设备保温

Export Equipment Insulation

国际石化工程

International Petrochemical

高端装备制造

High-End Equipment Manufacturing

电力出口项目

Power Export Projects

海洋工程平台

Offshore Platforms

跨国冶金项目

Cross-Border Metallurgy

清洁能源出口

Clean Energy Export

适用于对抗拉强度、结构稳定性及耐久性有更高要求的工业场景

Suited to industrial scenarios with higher requirements on tensile strength, structural stability and durability

工程价值 Engineering Value

为客户创造可量化的工程收益

Quantifiable Engineering Benefits

≥100kPa
更高抗拉强度
Higher Tensile Strength
↓
降低专利风险
Reduced Patent Risk
25%+
减少运行能耗
Energy Consumption Reduction
<1年
超额投资回收周期
Incremental Payback

保温层厚度对比

Insulation Thickness Comparison

厚度减少 50% — 相同保温效果下，CAS-A0 保温层总厚度仅为传统材料的 50%，大幅节省管廊空间与支架载荷 50% Thinner — Under equivalent insulation performance, CAS-A0 requires only 50% of traditional material thickness, significantly saving pipe rack space and support load.
传统保温方案 30mm/层 × 4层 120mm CAS-A0 方案 10mm/层 × 6层 60mm
技术参数 Technical Specifications

CAS-A0

CAS-A0

导热系数（25℃）Thermal Conductivity (25℃)0.030 W/(m·K)
导热系数（300℃）Thermal Conductivity (300℃)0.060 W/(m·K)
导热系数（500℃）Thermal Conductivity (500℃)0.097 W/(m·K)
最高使用温度Max Temperature650℃
憎水率Hydrophobicity/
燃烧性能Fire PerformanceA1级
抗拉强度Tensile Strength≥100 kPa
容重Bulk Density120 ± 20 kg/m³
导热系数（25℃）Thermal Conductivity (25℃)0.030 W/(m·K)
导热系数（300℃）Thermal Conductivity (300℃)0.060 W/(m·K)
导热系数（500℃）Thermal Conductivity (500℃)0.097 W/(m·K)
最高使用温度Max Temperature650℃
憎水率Hydrophobicity≥98%（整体憎水）≥98% (full hydrophobic)
燃烧性能Fire PerformanceA1级
抗拉强度Tensile Strength≥100 kPa
容重Bulk Density120 ± 20 kg/m³
CAS 系列产品对比 CAS Series Comparison

如何选择产品

How to Choose

根据您的工况温度和性能需求，选择最适合的产品型号

Select the model that best fits your temperature and performance requirements

CAS-YN450

高性价比纳米孔绝热材料

Cost-Effective Nanoporous Insulation

最高650℃ | 经济型方案

Up to 650℃ | Economical
CAS-A0

加强款

Reinforced Grade

最高650℃ | 更高抗拉强度

Up to 650℃ | Higher Tensile Strength
CAS-HT

超高温型

Ultra-High Temperature

最高1000℃ | 极限工况

Up to 1000℃ | Extreme Conditions

需要选型建议或技术咨询？

Need Selection Advice or Technical Consultation?

联系我们的技术工程师，获取针对您工况的专业产品推荐和定制化解决方案。

Contact our engineers for professional product recommendations and customized solutions for your application.

技术咨询Technical Consult
